Overhead Bare Aluminum Conductor All Aluminum AAC Conductor AAC Wire Cable
Description:
The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electric power transmission and distribution lines with various grade voltage.
| Products | Overhead Bare Aluminum Conductor All Aluminum AAC Conductor AAC Wire Cable |
| Type | AAC cable wire |
| Material | Aluminum |
| Power Capacity | 1~10KV |
| Certification | ISO9001, ISO14001, CCC |
| Galvanization | No |
| Packing | New wooden drum, Reel, Circle or according to customer's request |
| payment term | L/C, T/T, Western Union, MoneyGram |
| Life Period | More than 25 years, it is according to installing environment |
| Certificates | ISO,CCC, TUV, CE |
Construction

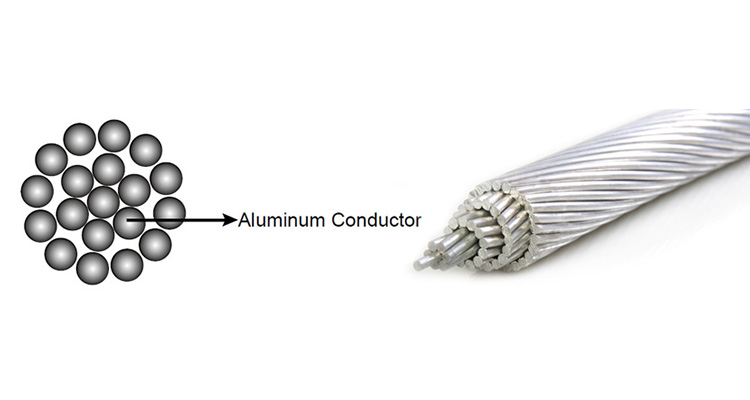

All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires available in both single layer and multi-layer constructions.
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.
Features
- High strength to weight ratio
- Better sag characteristics
- Improved electrical properties
- Excellent resistance to corrosion
Application
Aluminium Conductors are predominantly used in Overhead Line applications and for primary and secondary power distribution.
All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.
Specification
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
Relative manufacturing standards
Our Bare conductor can meet or exceedthe item of cable international standards.
such as:
AAC : IEC 61089, ASTM B231, BS 215 part1, DIN 48201 etc.
AAAC : IEC 61089, ASTN B399, BS EN50183, BS 3242, DIN 48201 etc.
ACSR : IEC61089, ASTM B232, BS 215 part2, DIN 48204 etc.
ACAR : ASTM B524, IEC 61089 etc.
AACSR : ASTM B711, DIN 48206, IEC 61089 etc.
Product Tags:
|
|

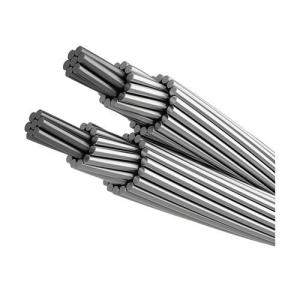

High Strength ASTM 795 All Aluminium Conductor Images
|
