Distribution Lines 1350-H19 35000V Overhead Aluminum Wire

Name: Distribution Lines 1350H19 35000V Overhead Aluminum Wire
Brand: Sanwu
Price: 0.2 USD

China Distribution Lines 1350-H19 35000V Overhead Aluminum Wire wholesale

Brand Name : Sanwu

Model Number : ACAR

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : USD 0.2-20 per meter

Payment Terms : L/C, T/T

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : wooden drums

Conductor : Aluminum

Color : Silver

Insulation : Bare

Rated Voltage : 0.6-1kv

Application : Aerial power distribution lines

Service Life : 70 years

Warranty : 1 year

Core : Aluminum alloy

Contact Now

Aluminium Conductor Alloy Reinforced Overhead Bare Wire Cable

Product Name	Aluminum Conductor Alloy Reinforced (ACAR)
Conductor	Aluminum/Copper
Construction	Aluminum Stranded & Aluminum Alloy Reinforce
Colors	Assorted upon request
Voltage	600-1000V, 1KV-35KV
Application	Used as bare overhead conductor for power distribution lines
Standards	GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

1. Applications:

ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.

As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.

2. Features :

Aluminum Conductor Alloy Reinforced (ACAR)

cable is an excellent conductor choice where current

carrying capacity, higher strength and a lower conductor

weight are critical to the line design.

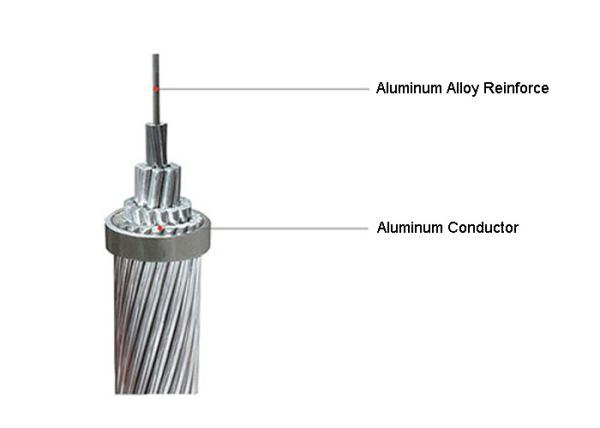

3. Construction:

Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.

In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.

4. Producing Process:

Distribution Lines 1350-H19 35000V Overhead Aluminum Wire
