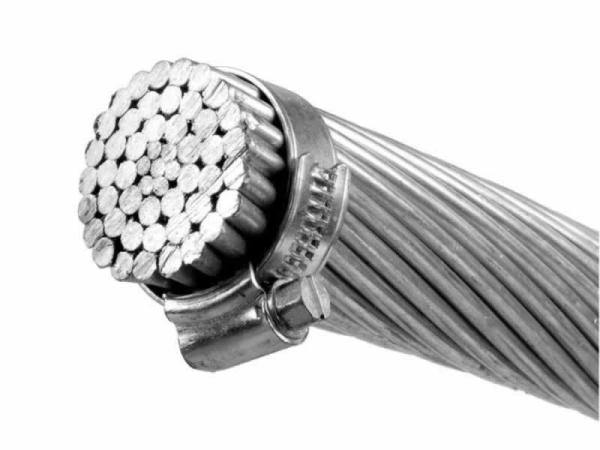

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles

Name: ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles
Brand: Sanwu
Price: 1 USD

Brand Name : Sanwu

Model Number : All Aluminium Conductor

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : New wooden drum, Reel, Circle or according to customer's request

Name : Aac All Aluminum Conductor

Standard : ASTM BS DIN

Packing : Spans On Wood Poles

Supplier by Area : Asia,South America,South Africa

MOQ : 10KM

Sample : Free

Contact Now

ASTM BS DIN Aac All Aluminum Conductor For Spans On Wood Poles

When high tensile strength is not needed, this wire can be used in spans on wood poles, transmission towers, and other structures. Extra high voltage (EHV) transmission lines and sub-service spans at distribution or usage voltages on private property are examples of applications.

Because it is lighter than other bare overhead conductors, AAC (all aluminum conductor) is the most cost-effective option. It makes using simpler fittings and conducting installation tasks easier. Because of its uniform design, the wire resists corrosion.

Service Performance

(1). The permissible long-time operating temperature for aerial conductors is 70^oC.

(2). Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

All Aluminium Conductor Specification

Nominal area	Stranding &wire diameter	Approx Overall diameter	Breaking Load	DC Resistance at 20	Approx. Weight
Nominal area	mm	mm	N	Ω/km	Kg/km
16	7/1.70	5.10	2840	1.802	43.5
25	7/2.15	6.45	4355	1.127	69.6
35	7/2.50	7.50	5760	0.8332	94.1
50	7/3.00	9.00	7930	0.5786	135..5
70	7/3.60	10.80	10950	0.4018	195.1
95	7/4.16	12.48	14450	0.3009	260.5
120	19/2.85	14.25	19420	0.2373	333.5
150	19/3.15	15.75	23310	0.1943	407.4
185	19/3.50	17.5	28440	0.1574	503.0
210	19/3.75	18.75	32260	0.1371	577.4
240	19/4.00	20.00	36260	0.1205	656.9
300	37/3.20	22.40	46850	0.09689	820.4
400	37/3.70	25.90	61150	0.07247	1097
500	37/4.16	29.12	76370	0.05733	1387
630	61/3.63	32.67	91940	0.04577	1744
800	61/4.10	36.90	115900	0.03588	2225
